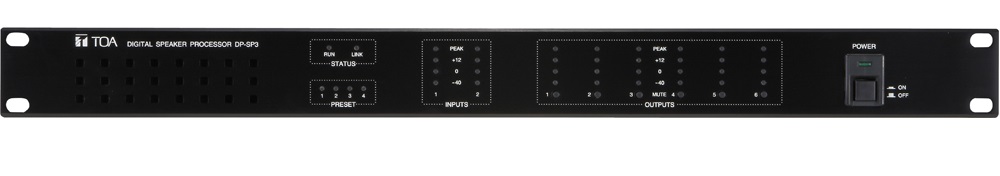

Bộ xử lý số TOA DP-SP3

Đặc điểm nổi bật

DP-SP3 TOA là bộ xử lý tín hiệu số với 2 ngõ và và 6 ngõ ra khác nhau. Đặc tính của bộ xử lý kỹ thuật số đó là khả năng tinh chỉnh băng tần, Compressor, Delay. Và chức năng khác bao gồm cả ngõ vào PAD, ngõ ra chiết áp , ngõ ra MUTE, có thư viện đã thiết lập sẵn âm thanh cho loa TOA. Thiết bị được cài đặt, cấu hình đơn giản thông qua phần mềm chuyên dụng trên máy tính và cáp LAN.

Power Source	220-240 V AC, 50/60 Hz
Power Consumption	25 W
Frequency Response	20 Hz - 20 kHz, ±1 dB
Sampling Frequency	96 kHz
Dynamic Range	110 dB or more
Distortion	0.03 % or less, 1 kHz, +4 dB* input/output, 20 Hz - 20 kHz BPF
Crosstalk	-80 dB or less, 1 kHz
Input	2 channels, +4 dB* (max. +24 dB*), 10 kΩ, electronically-balanced, removable terminal block (3P)
Output	6 channels, +4 dB* (max. +24 dB*), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P)
AD Converter	24 bits
DA Converter	24 bits
Preset Memory	16

Signal Processing Section

Equalizer/Filter	Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q: 0.267 - 69.249 Filter: High-pass filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct Low-pass filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct Notch filter: 20 Hz - 20 kHz, Q: 8.651 - 69.249 All-pass filter: 20 Hz - 20 kHz, Q: 0.267 - 69.249 High-shelving filter: 5 - 20 kHz, ±15 dB Low-shelving filter: 20 - 500 Hz, ±15 dB Horn equalizer: 20 kHz, 0 - 18 dB in 0.5 dB steps
Crossover	2 ways, 3 ways, 4 ways Crossover filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct, -15 to +12 dB, polarity switchable Delay: 0 - 170.656 ms in 0.01 ms steps
Compressor	Threshold: -20 to +20 dB* in 1 dB steps Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1, 12:1, 20:1, infinity:1 Attack time: 0.2 ms - 5 s Release time: 10 ms - 5 s
Delay	Delay time: 0 - 682.656 ms in 0.01 ms steps
Matrix	2 × 6
Crosspoint Gain	minus infinity to 0 dB in 1 dB steps

Function	Input PAD (-14 dB) control, analog output attenuator (- to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers input/output level indicator (4-point LED indicator), output MUTE switch ×6

Control

Contact input	4 channels, open voltage: 5 V DC, short-circuit current: 5 mA, removable terminal block (5 P), control function: preset memory selection, volume control, and mute
Network	Network I/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation) RJ45 connector, connection via switching hub Network protocol: TCP/IP Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN (Cat. 5-STP or better) Maximum cable length: 100 m (109.36 yd) (between DP-SP3 and switching hub)

Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	90 %RH (no condensation)
Finish	Panel: Aluminum, hairline, black, Case: Surface-treated steel plate
Dimensions	482 (W) × 44 (H) × 289 (D) mm (18.98" × 1.73" × 11.38")
Weight	3.1 kg (6.83 lb)
Accessories	Power supply cord ((2 m (6.56 ft)) ×1, removable terminal plug (3P) ×8, removable terminal plug (5P) ×1, rack mounting screw ×4, CD-ROM (containing setup software) ×1

Thông số kỹ thuật

Power Source	220-240 V AC, 50/60 Hz
Power Consumption	25 W
Frequency Response	20 Hz - 20 kHz, ±1 dB
Sampling Frequency	96 kHz
Dynamic Range	110 dB or more
Distortion	0.03 % or less, 1 kHz, +4 dB* input/output, 20 Hz - 20 kHz BPF
Crosstalk	-80 dB or less, 1 kHz
Input	2 channels, +4 dB* (max. +24 dB*), 10 kΩ, electronically-balanced,removable terminal block (3P)
Output	6 channels, +4 dB* (max. +24 dB*), applicable load 600 Ω or more,electronically-balanced, removable terminal block (3P)
AD Converter	24 bits
DA Converter	24 bits
Preset Memory	16
Equalizer/Filter	Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q: 0.267 - 69.249Filter:High-pass filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/octLow-pass filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/octNotch filter: 20 Hz - 20 kHz, Q: 8.651 - 69.249All-pass filter: 20 Hz - 20 kHz, Q: 0.267 - 69.249High-shelving filter: 5 - 20 kHz, ±15 dBLow-shelving filter: 20 - 500 Hz, ±15 dBHorn equalizer: 20 kHz, 0 - 18 dB in 0.5 dB steps
Crossover	2 ways, 3 ways, 4 waysCrossover filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct,-15 to +12 dB, polarity switchableDelay: 0 - 170.656 ms in 0.01 ms steps
Compressor	Threshold: -20 to +20 dB* in 1 dB stepsRatio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1, 12:1, 20:1, infinity:1Attack time: 0.2 ms - 5 sRelease time: 10 ms - 5 s
Delay	Delay time: 0 - 682.656 ms in 0.01 ms steps
Matrix	2 × 6
Crosspoint Gain	minus infinity to 0 dB in 1 dB steps
Function	Input PAD (-14 dB) control, analog output attenuator(- to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers input/output level indicator (4-point LED indicator), output MUTE switch ×6
Contact input	4 channels, open voltage: 5 V DC, short-circuit current: 5 mA,removable terminal block (5 P),control function: preset memory selection, volume control, and mute
Network	Network I/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation)RJ45 connector, connection via switching hubNetwork protocol: TCP/IPConnection cable: Shielded Cat. 5 or higher twisted pair cable for LAN(Cat. 5-STP or better)Maximum cable length: 100 m (109.36 yd) (between DP-SP3 and switching hub)
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	90 %RH (no condensation)
Finish	Panel: Aluminum, hairline, black, Case: Surface-treated steel plate
Dimensions	482 (W) × 44 (H) × 289 (D) mm (18.98" × 1.73" × 11.38")
Weight	3.1 kg (6.83 lb)
Accessories	Power supply cord ((2 m (6.56 ft)) ×1, removable terminal plug (3P) ×8, removable terminal plug (5P) ×1, rack mounting screw ×4,CD-ROM (containing setup software) ×1
